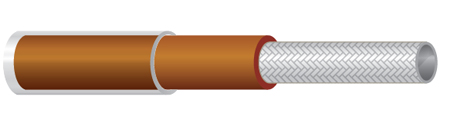

Fire Proof Sleeves
Description
Special development for protecting hoses, cables and pipes with heavy-textiled glass fiber and silicone rubber
coating in an extremely harsh environment. This prodect is especially excellent in high resistance to a metalic
with heat, fire and frame.
Brand
GENICONE®
Application
All industries which need fire resistance solution such as steel, shipbuilding, railroad, chemical, aerosoace and so on.
Technical Data
Properties
High heat-resistance |
Continuous service temp. |
-60~260℃ |
Peak exposure |
800℃(30 mn.) / 1100℃(15min.) / 1500℃(1min.) |
High fire-resistance |
Applied to UL VW-1, TEC 60695 2-10 |
High flexibility |
Silicone insulated |
spec.
Inside Dia. |
10mm ~ 116mm |
Min, thickness |
2.0mm ~ 3.0mm |
Package
Inside Dia. |
Packing |
10 ~ 20mm |
30m |
25 ~ 30mm |
20m |
36 ~ 51mm |
15m |
63mm above |
10m |
