Heat Resistant Hose
Heat Resistant Hose

■General type

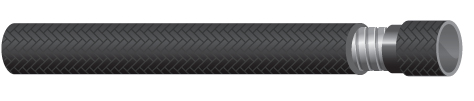

Heat Resistant Hose


■Reinforce type

Description
Flexible Hose - HF Series are the tube-products for protecting various cable sets from hazardous working fields where heat-resistant and mechanical strength are required.
Application
- steel mill industry
- Ship-building
- Rail way
- Chemistry industry
- Various working field in heat-resistant property
Feature
1. Excellence in mechanical strength
2. Shock-proof for inner wiring
3. Operating temp. -60 ~ 200℃
4. Fire-proof : appliled to VW-0
5. Halogen-free
Structure
1. Metallic flexible tube
2. Silicone rubber
3. Fiber-glass braiding + Silicone varnish coating
Technical Data
spec.
Inside Dia. 20.8mm ~ 88.9mm
Min, thickness 1.65mm ~ 3.20mm
