Under Floor Heating Cable |

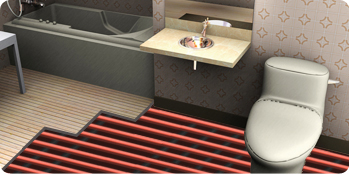

Generally, underfloor heating cable is the most applicable in situations where only floor warming is desired or the area to be heated is relatively small. The electric draw of an electric cable system can be a limiting factor in designing a system if your electric service is not sized to accommodate it. Under floor heating system is widely used around the requirements of residential and commercial buildings such as condominium pension, villa, resort, church, temple and so on, Also, effectively used for removing of water and moisture. |

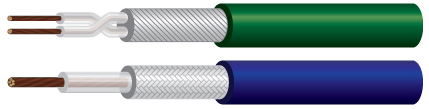

NO | CONSTRUCTION | MATERIAL |
1 | Heating Element | Metal or Nickel Alloy |
2 | Insulation | FEP / ETFE / Silicone / PVC |
3 | Earth Braid | Tinned Copper |
4 | Out Sheath | Fluoropolymer / Silicone / PVC |
■ General Type - single core supplied ■ Single Ended Type - only one cold connection supplied ■ Mat Type - Mat-attached types will help users install easily and instantly - Customized designs available |
Voltage rating | AC 220V (110/380V available) |
Output | 150W/m ~ 200W/m |
Temp. | 105 °C |
Durability | 105 °C |
Heated floor temp. | 5°C ~ 40°C |
heating area | 0.5 sq.m ~ 24.0 sq.m |
