High Temperature Wire
High Temperature Wire
High Temperature Wire
Description

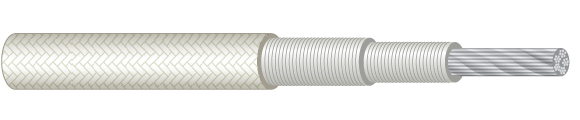

An electronic wire which are donble wrapped with glass fiber for the very high temperautre working environment.
Brand
GENICOUL®
Certification
UL approved : E120271 (AWM 5420 : 450℃, 300V)
Application
wiring of heating elememnt, cartridges, bands and hot plates
Technical Data
Voltage Class 300V / 600V
Using Temperature GCL-200 Wh/Bk (-60℃ ~ 200℃)
GCL-300 Wh/Rd (-60℃ ~ 300℃)
GCL-400 Natural (-60℃ ~ 400℃)
Testing Voltage 2000V / 1min.
Production Range 0.3㎟ ~ 200㎟
