Under Floor Heating Cable
Under Floor Heating Cable Russian Catalogue
■ General type

Under Floor Heating Cable


■ Single ended type
Description

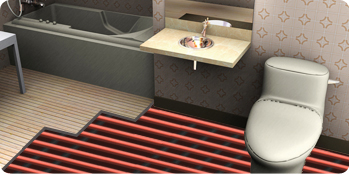

Underfloor heating cable is designed to warm stone and tile floors in bathrooms, kitchens, entries and any room. Merit of underfloor heating cable is efficient to install and run. Also underfloor heating system is maintenance-free in general since this system doesn't require cleaning or replacement of filters. Moreover underfloor heating cable is silent while operating, so its invisibility creates total freedom of decor and furniture layout. Low temperature under floor heating is embedded in the floor or placed under the floor covering. As such it creates no burn hazards, nor is it a hazard for physical injuries due to accidental contact leading to tripping and falling.
Application
Generally, underfloor heating cable is the most applicable in situations where only floor warming is desired or the area to be heated is relatively small. The electric draw of an electric cable system can be a limiting factor in designing a system if your electric service is not sized to accommodate it. Under floor heating system is widely used around the requirements of residential and commercial buildings such as condominium pension, villa, resort, church, temple and so on, Also, effectively used for removing of water and moisture.

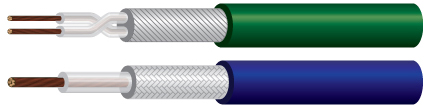

Structure
NO CONSTRUCTION MATERIAL
1 Heating Element Metal or Nickel Alloy
2 Insulation FEP / ETFE / Silicone / PVC
3 Earth Braid Tinned Copper
4 Out Sheath Fluoropolymer / Silicone / PVC
Type
■ General Type
- single core supplied

■ Single Ended Type
- only one cold connection supplied

■ Mat Type
- Mat-attached types will help users install easily and instantly
- Customized designs available
Technical Data
Voltage rating AC 220V (110/380V available)
Output 150W/m ~ 200W/m
Temp. 105 °C
Durability 105 °C
Heated floor temp. 5°C ~ 40°C
heating area 0.5 sq.m ~ 24.0 sq.m
