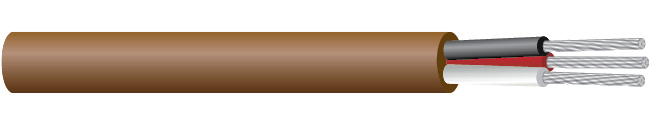

SIHF/SIF [Silicone heat resistant cable]
Description
SIF/SIHF is a specialized silicone multi/single-core cable for use in high voltage and high strenghth extruded with silicone heat resistant rubber or whenever the insulation is subject to extreme temperature changes.
SIF/SIHF cables are mainly found in steel producing industry as well as in cement, glass, ceramic factories and ship building,.
SIF/SIHF cables are low-smoke and halogen-free especially suited for use in power plants.
The silicone jacket provides added heat, chemical, oil and acidic resistance. Not permitted for outdoor use.
Certification
UL approved : E120271 Silicone Jacket Cable
Application
- Wiring of Steel, cement, ceramic and iron works
- Power & Control cable(Heat Resistant / High voltage) for plants industry
- Bakery equipment and industrial furnaces
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
- Ventilator engineering
- Air-conditioning technology
- Galvanisation technology
Assortment
SIF : Single conductor cable
SIHF : Multi-conductor cable
SIHF-SB : Multi-conductor cable with inner shield
SIF-GL : SIF + Outer Glass Braiding
SIHF-GL : SIHF + Outer Glass Braiding
SIHF-P : SIHF + Outer Glass & metal Braiding
Structure
NO |
CONSTRUCTION |
MATERIAL |
1 |
Conductor |
Flexible tinned copper wire(IEC 60228, Class5) |
2 |
Insulation |
Heat Resistant of Silicone Rubber |
3 |
Inner shield |
Tinned copper wire |
4 |
Out sheath |
Heat Resistant of Silicone Rubber |
5 |
Exterior |
E-glass fiber or Glavanized steel wire.(option) |
Technical Data
Physical and Chemical features |
Continuous Temp. |
-60 ~ 200℃ (Peak 230℃) |
Excellent flexibility bending radius |
Dia. Of cable X 15 |
Very good resistance of ambient heat shock |
Flame Retardant properties and self-extinguish |
Electric features |
Standard voltage |
0.6/1.0 kv |
Test voltage |
3000v / 5min |
Insulation resistance |
above 200 MΏ/km |
