Pipe Line Heating Cable
Pipe Line Heating Cable

■SCW-1C (Single Conductor)




■SCW-2C, 3C (Dual or Triple Conductor)

Description
Pipe heating cable namely Long line heating cable is the customized products designed into particular length and loading configurations and so not as versatile as parallel cables.
These Heating Cables are long-circuit length possible, typically with 3-phase. Pipe heating cable require electric supply points only at multi-kilometre intervals(normally up to 250m per each).
Application

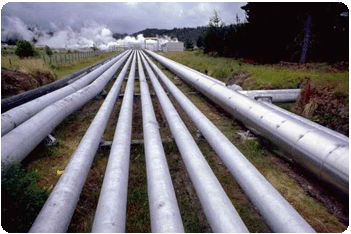

Long line heating Cable, Pipe heating cable is mainly widely used for long distance pipe line and oil pipe line. This pipe heating cable is for environment in which where the temperature of a transmitting flouid should be maintained warmly to smoothen the flow. Also Tank farms, piers for oceanport vessels, & pipes between petrochemical facilities are all exmpels of applications for which longline heat tracing may be used. These series-resistance type heating cables can withstand continuous exposure to temperatures up to 250°C.  Pipe Line Heating Cable
Approval
[ Single Conductor Heating Cable ]
- E120271 / AWM 10142 / Heatrace SCW-1C
- Rating : 250°c / 600Vac
Structure
■ SCW-1C



NO CONSTRUCTION MATERIAL
1 Heating element Tinned copper, Nickel coated copper Alloy
2 Insulation Fluoropolymer resin
3 Braiding Tinned Copper
4 Out Sheath Fluoropolymer Resin


■ SCW-2C/3C


NO CONSTRUCTION MATERIAL
1 Heating element Tinned opper, Nickel coated copper Alloy
2 Insulation Fluoropolymer resin
3 Inner Sheath Silicone rubber or PVC
4 Braiding Tinned Copper
5 Out Sheath Fluoropolymer resin or silicone Rubber or PVC

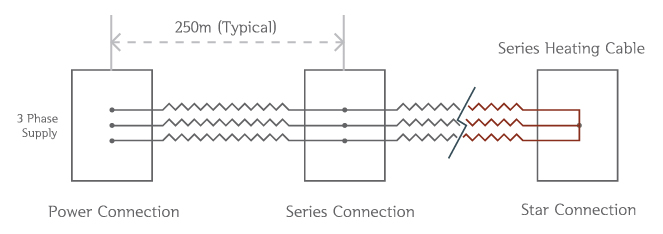

■ Standard Circuit Diagram

Technical Info
Circuit length SCW-1C [Max. 5km] / SCW-3C [Max. 2km]
Voltage 220V ~ 750V
Temp. 40°C ~ 200°C
Watt 10W ~ 60W/m
Type SCW-1C(ROUND) / 2,3C (FLAT)
