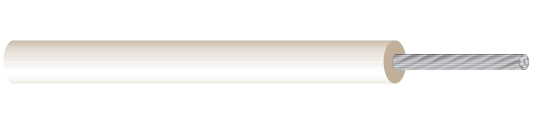

Silicone Rubber Wire
Silicone Rubber Wire
Silicone Rubber Wire
Description
It is basic type of silicone rubber wire and widely used itself and inside insulation of Multi cable.
Flexibility which is specialty of silicone is excellent. It is possible to manufacture product with various properties per application.
Brand
GENICONE®
Certification
UL approved : E120271 (AWM 3132 / 3133 / 3135 / 3239 / 3367 / 3512)
Application
- Internal wiring of high temperature part
- Where high flexibility of wire installation is required
Strcuture
NO CONSTRUCTION MATERIAL
1 Conductor Tinned copper / Nickel coated copper / Silver coated copper
2 Insulation Silicone Rubber
Technical Data
Voltage Class 300V ~ 20KV
Using Temperature -40℃ ~ 180℃ ( Max. 200℃ )
Property High property in sheath strengh, high voltage resistance and flame retardant
