Shipboard engine cable [FFCS]
Description
Shipboard Cable (FFCS) has third-party approval by 9 countries.
All certificates of Shipping is the leading international classification society devoted to promoting the security of life, property and the marine environment through the development and verification of standards for the design, construction and operational maintenance of marine-related facilities. YOUNG CHANG's shipboard cable is designed to implement a wide range of shipboard engine, lighting, prower, networking and control applications
Certification
Application
Control, power & lighting in ship-building and vessile.

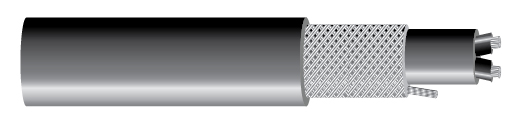

Strcuture
NO |
CONSTRUCTION |
MATERIAL |
1 |
Conductor |
Flexible Tinned copper wire (IEC-60228, Class 5) |
2 |
Insulation |
Fluoro-polymer, FEP |
3 |
Bedding |
Silicone rubber |
4 |
Shield |
Tinned copper Braiding with Drain wire. |
5 |
Out Sheath |
Fluoro-polymer, ETFE |
* Core recongnition : Black with white numbering mark.
* Standard color : Black
Technical Data
Voltage Class |
300 / 500V : JIS / UL / IEC 60228-3 / VDE 0295 |
Standard applied |
IEC 60092-350 |
Design guideline |
IEC 60811-2 |
Ozone Resistance |
IEC 60332-3 |
Flame retardant Cat. A |
Temp. |
Fixed laying |
-50℃ ~ +95℃ |
Using |
-15℃ ~ +95℃ |
|
(Continous service temp. is below 95℃) |
Number of Spec |
No. of cores |
Range of cross section |
2 to 20 cores |
0.75 SQ |
2 to 7 cores |
1.0 to 1.5 SQ |
2 to 3 cores |
2.0 to 2.5 SQ |
