Silicone Glass Wire
Description
Silicone Glass Wire s silicone insulated and glass fiber braided. This wire have strong properties in high flexibility and hing performance.
Also SRG has high resistance to a machinery strength, heat shock and ultra violet rays.
Brand
GENICONE®
Certification
UL / CSA approved : E120271(AWV 3068 / 3069 / 3070 / 3071 / 3122 / 3172 / 3512) / E120347( SF-1,2 SEW-1,2)
Application
- Lighting equipment, Motor, Heavy electric machinary or facility.
- Every kinds of Electric Home appliance like, Rice Cooker, Microwave Oven, TV Sets, etc.
- And other equipment which works on High temp. environment internally.

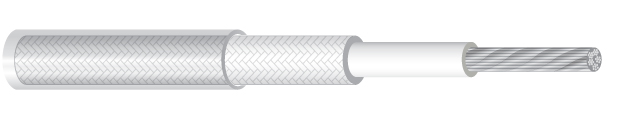

Structure
NO |
CONSTRUCTION |
MATERIAL |
1 |
Conductor |
Tinned Copper, Nichkel coated Copper |
2 |
Insulation |
Silicone Rubber |
3 |
Sheath |
Glass-Fiber Braiding |
4 |
Coating |
Silicone Varnish |
Technical Data
Voltage Class |
300V or 600V |
Continuous Temp. |
-60℃ ~ 200℃ |
Test voltage |
2,000V/1min |
Product Size |
0.14㎟ ~ 300㎟(SQ) |
